Three-Dimensional Magnetic Field Scanner

3D Magnetic Field Scanner
3D Magnetic Field Scanner

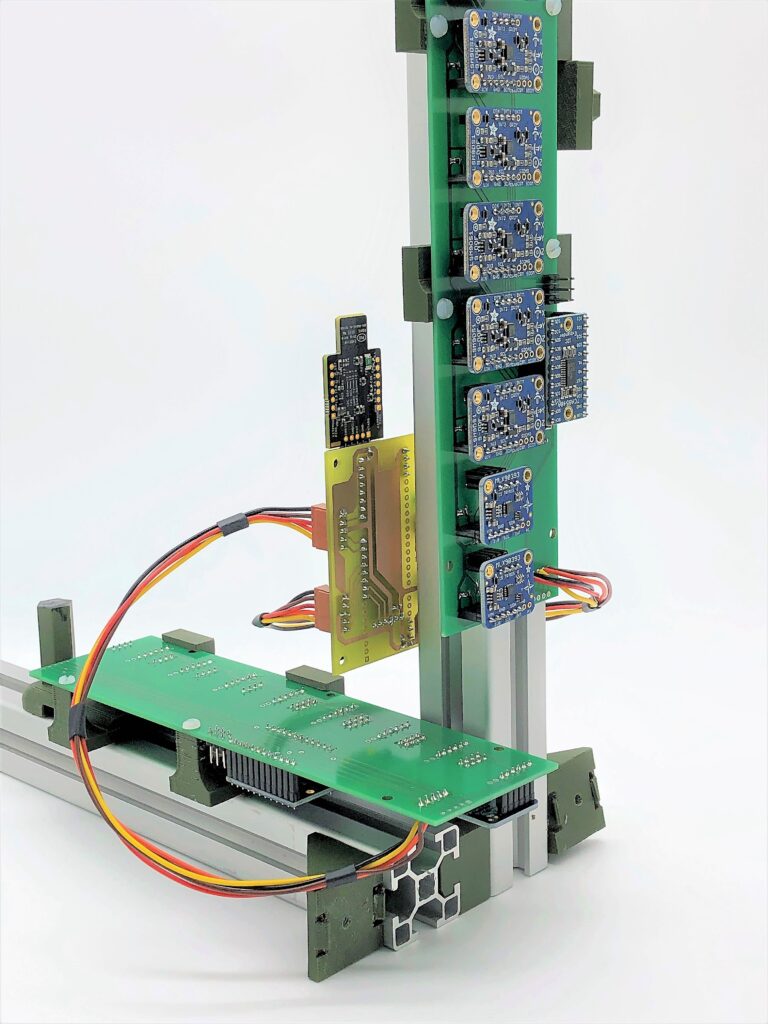

On the push of a button, a three-dimensional image will be taken of the magnetic field lines that surround a large size magnetic field generator (inductor). This information provides an instant understanding of the physical dimension and strength of a magnetic field structure from an electric powered coil.

96 measurements will be taken from 32 locations around the inductor and then forwarded to a connected PC, stored on an SD memory card, and further processed to calculate the dimensions of the analysed magnetic field generator in real-time.

The user can adjust the mechanics of the Field Line measurement system to adapt to the physical dimensions of the test object. The measurement range covers from several milli-gauss up to 500 Gauss (50 mT).
